3.2.1 Initial Setup

IRP instance initial setup wizard includes the following steps:

→  Specifying Infrastructure IP addresses
→  Providing the list of analyzed networks
→  Configuring Span Collector
→  Configuring Flow Collector
→  Selecting IRP’s Improvement mode
→  Setup the management interface
→  Indicate interfaces that IRP uses for active probing

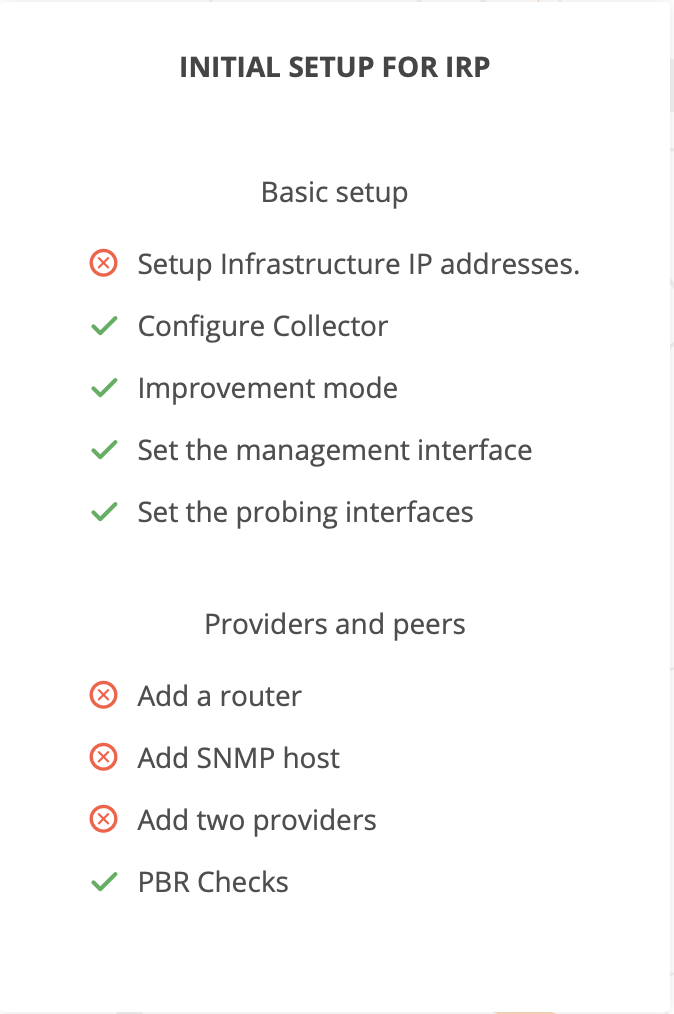

Figure 3.2.1: Configuration editor: Initial Setup

Basic Setup #

–  Setup Infrastructure IP addresses (explorer.infra_ips)

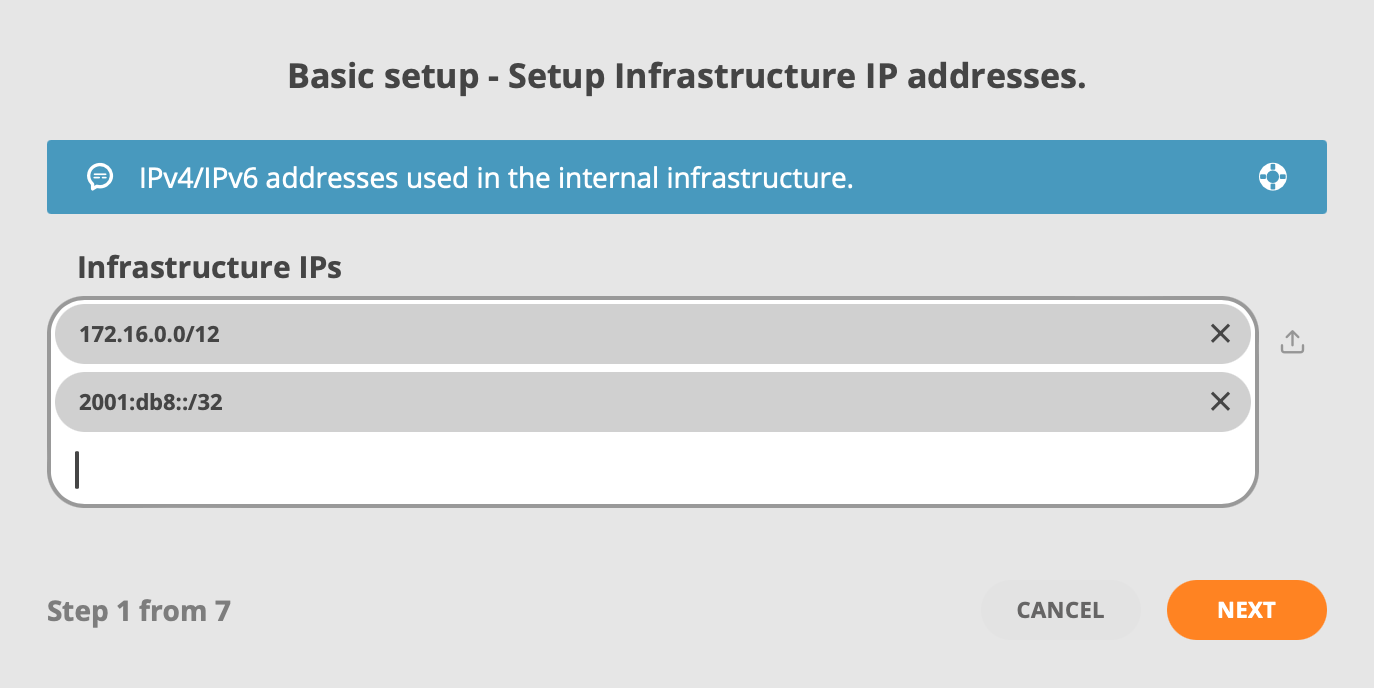

Figure 3.2.2: Configuration editor: Setup Infrastructure IP addresses

–  Setup Analyzed networks (collector.ournets)

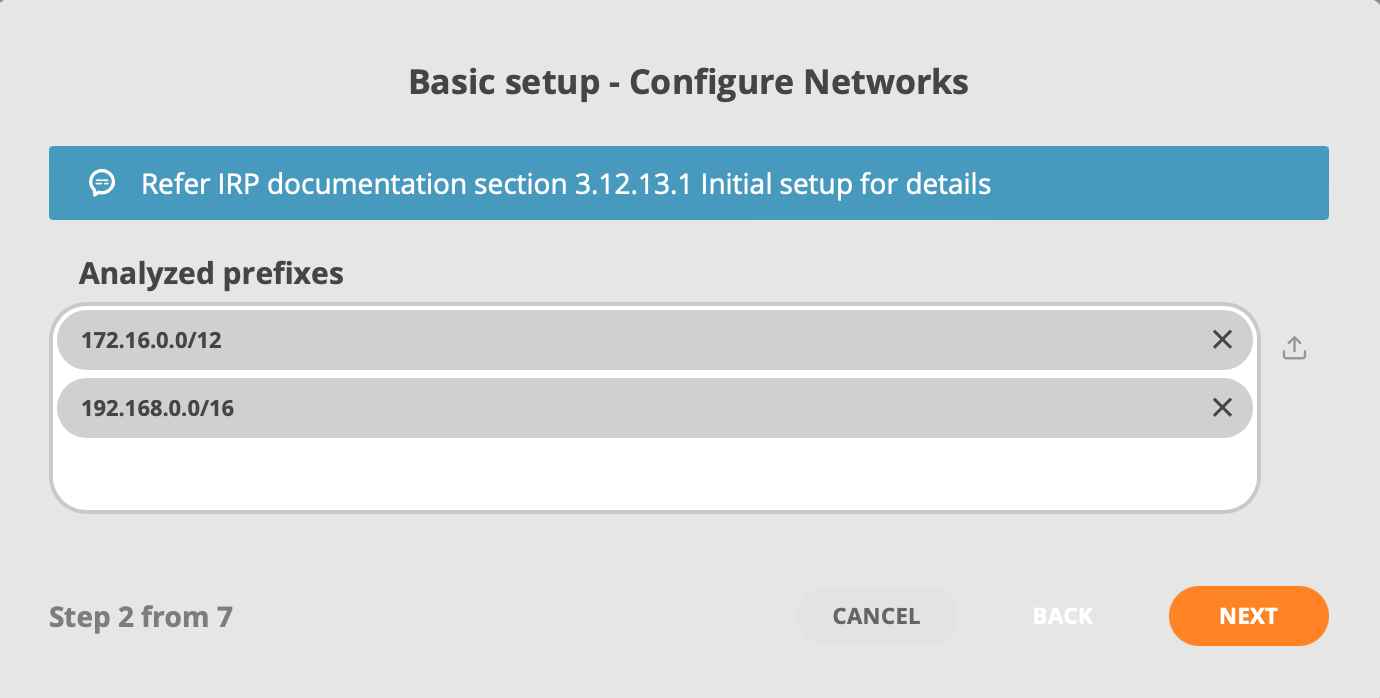

Figure 3.2.3: Configuration editor: Setup Analyzed networks

–  Configure Collector:

*   Irpspand

–  Irpspand enable/disable (collector.span.enabled)
–  Irpspand interfaces (collector.span.interfaces)
–  Mindelay status (collector.span.min_delay)
–  Mindelay probing queue slots (collector.span.min_delay.probing_queue_size)

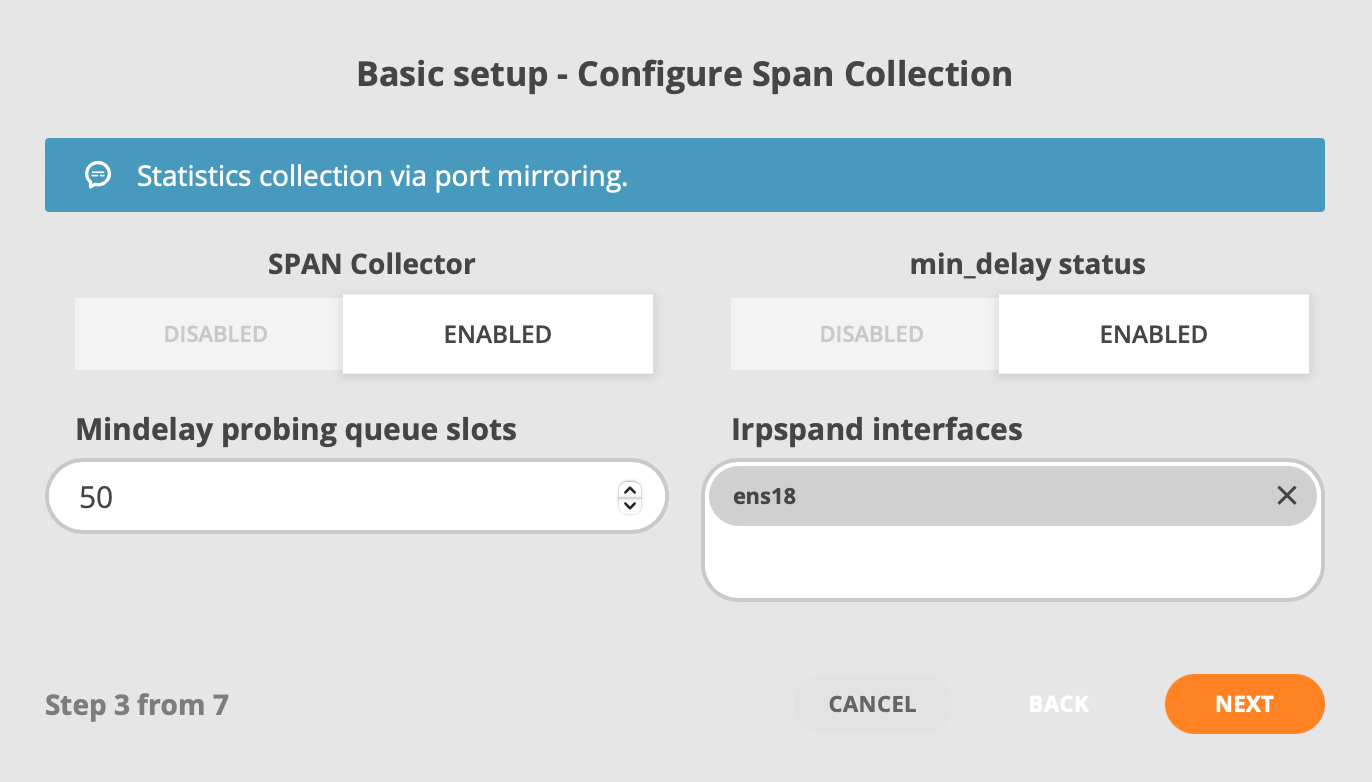

Figure 3.2.4: Configuration editor: Configure SPAN Collector

*   Irpflowd

–  Irpflowd enable/disable(collector.flow.enabled)
–  NetFlow UDP port(collector.flow.listen.nf)
–  sFlow UDP port(collector.flow.listen.sf)
–  Flow Sources(collector.flow.sources)

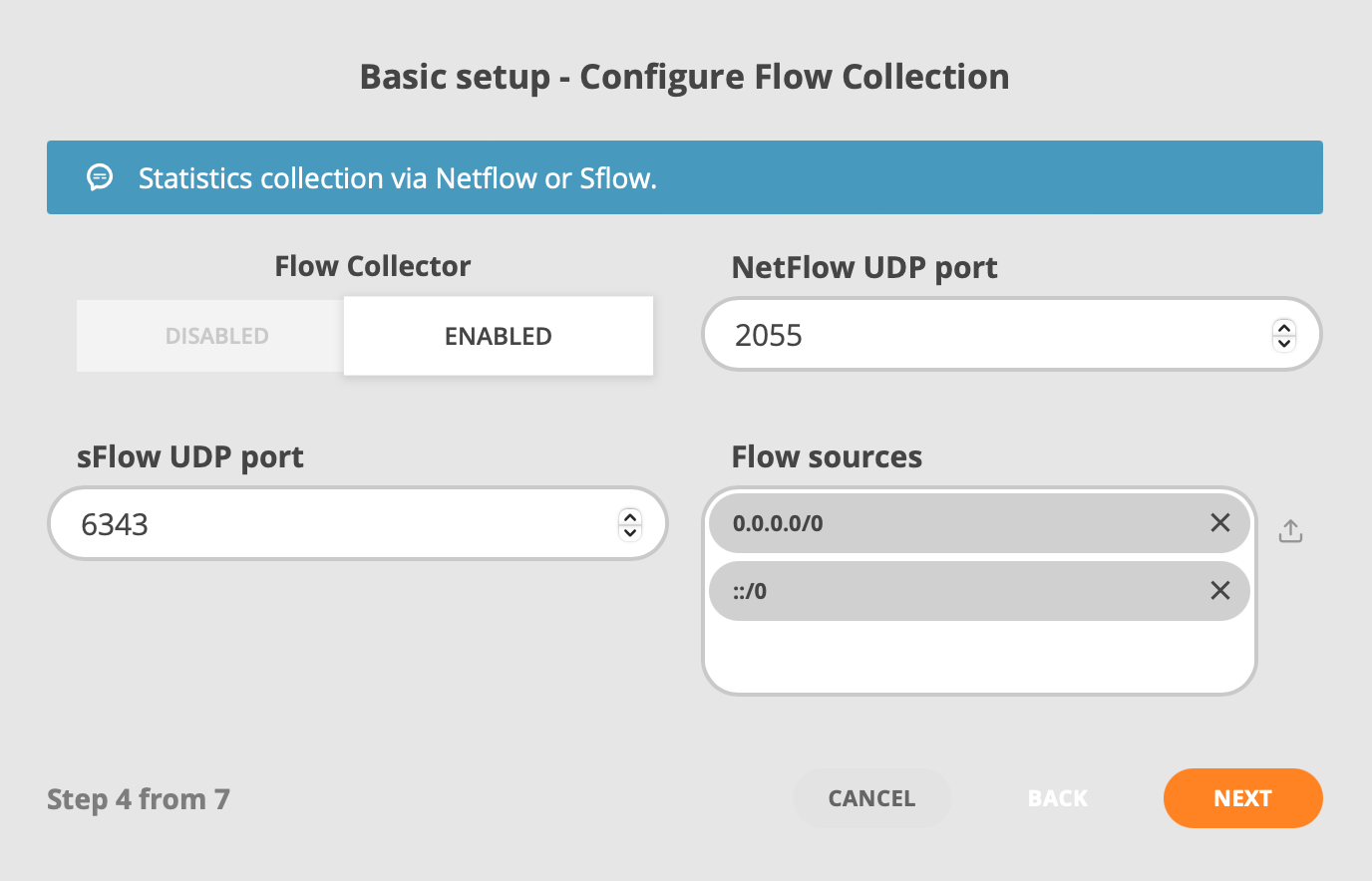

Figure 3.2.5: Configuration editor: Configure Flow Collector

–  Improvement mode (global.improve_mode)

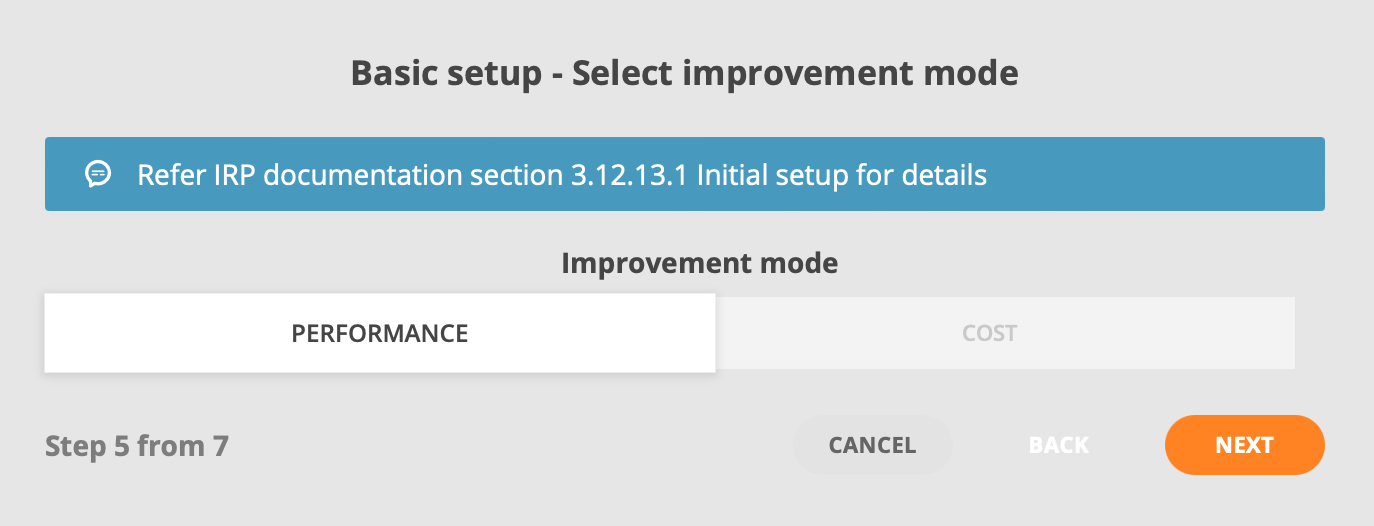

Figure 3.2.6: Configuration editor: Improvement mode

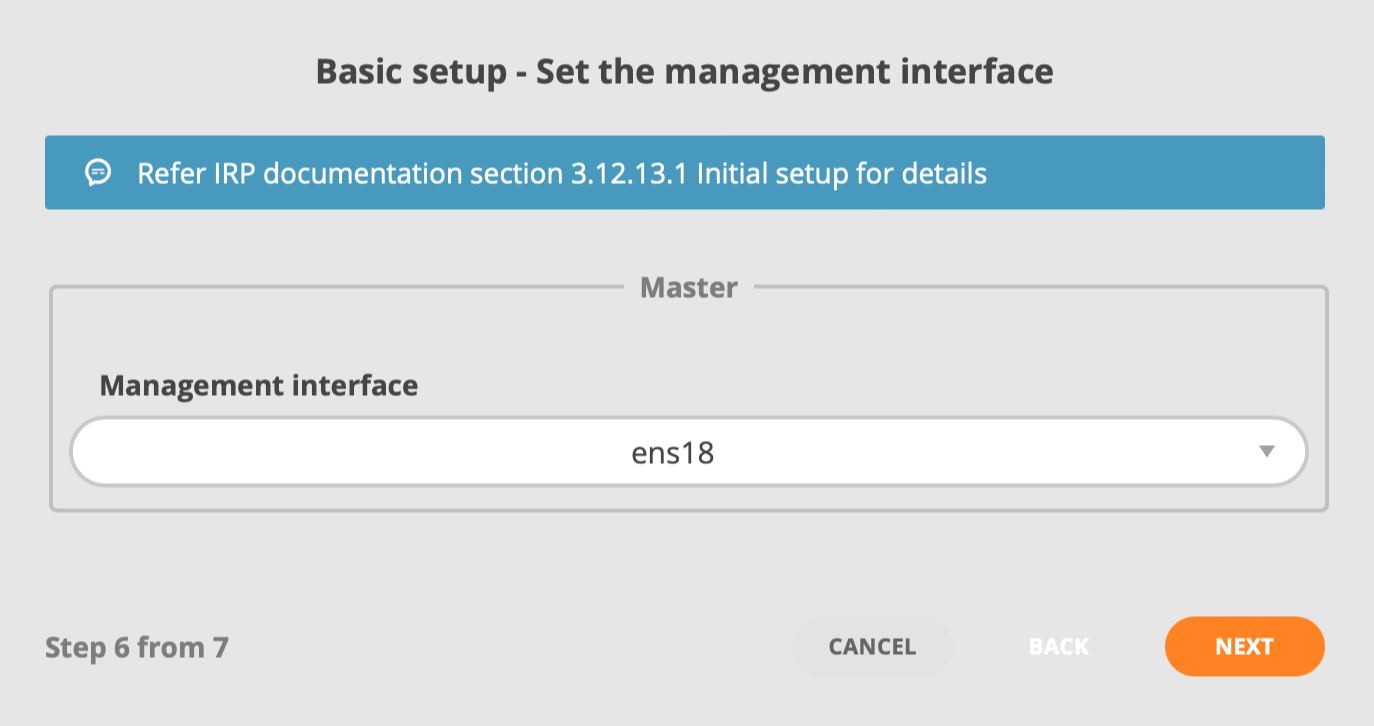

–  Set the managements interface (global.master_management_interface)

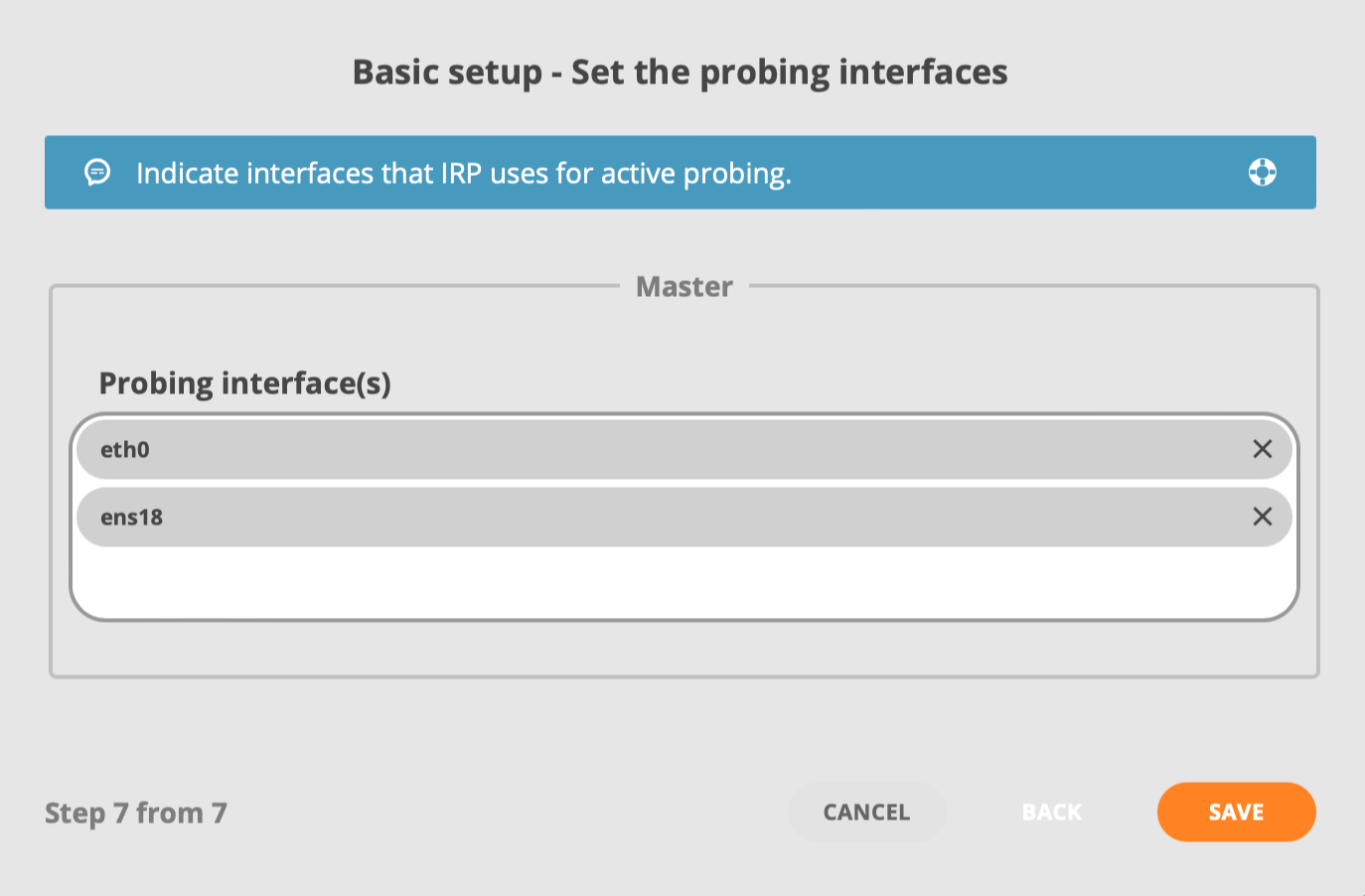

–  Set the probing interface (global.master_probing_interface)

–  Providers Setup

*  Add a router, see Add Router
*  Add two providers, see Add Provider
