3.12.7 Explorer configuration

To adjust the Explorer-related parameters, go to “Configuration → Explorer”.
The Explorer settings sections should be consulted for detailed Explorer parameters description.

• Infrastructure IPs (explorer.infra_ips)

• Explorer worker threads (explorer.maxthreads)
• Probing algorithms and Traceroute algorithms (explorer.probe.algorithm, explorer.trace.algorithms)
• High volume task precedence (explorer.high_vol_precedence)
• Process max collected IPs (explorer.max_collector_ips)
• First probing packets amount (explorer.probing.sendpkts.min)
• Adaptive probing packets count (explorer.probing.sendpkts.adaptive_max)
• ICMP timeout (explorer.timeout)
• Traceroute retry packets and packets per hop (explorer.traceroute.sendpkts, explorer.traceroute.retrypkts)
• Traceroute minimum and maximum ttl (explorer.traceroute.ttl.min, explorer.traceroute.ttl.max)

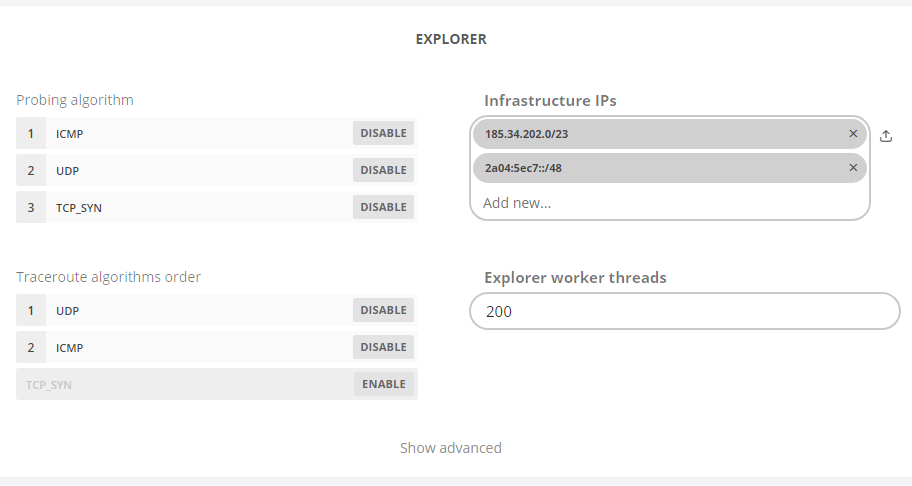

Figure 3.12.23: Configuration editor: Explorer settings
