3.2.1.1 Add Router
IRP communicates improvements to your edge routers.
The Add Router wizard guides you through the router configuration with the following steps:
→ Identify the router and its AS
→ Set up the Router IP address for the BGP session
→ Define BGP announcement attributes to distinguish and prioritize IRP improvements on this router
Check below the corresponding wizard steps:

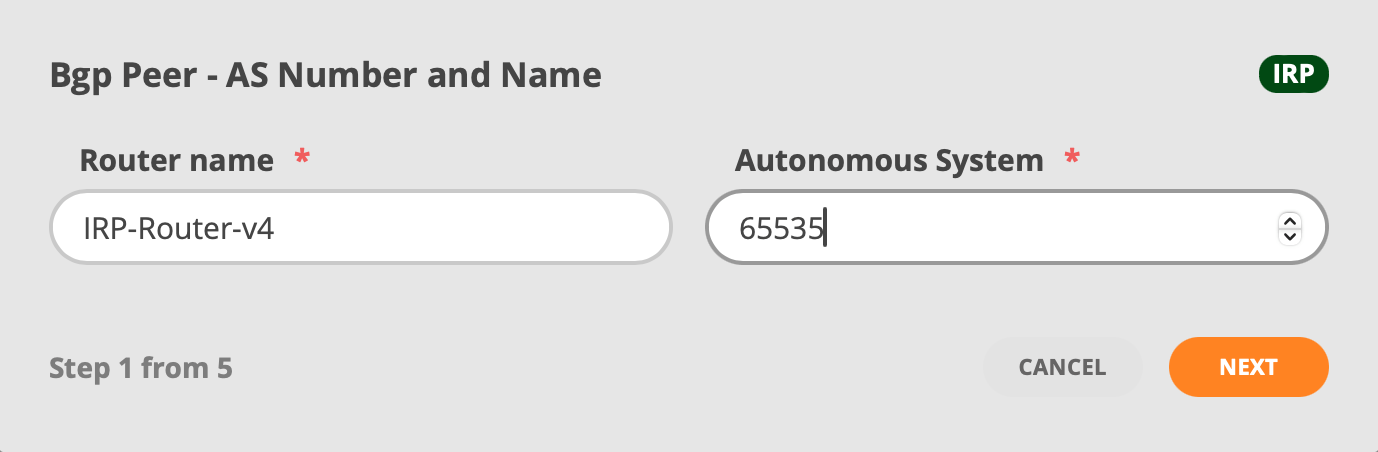

- Router name assigned within IRP for easy identification
- Autonomous System number of the network (bgpd.peer.X.as)

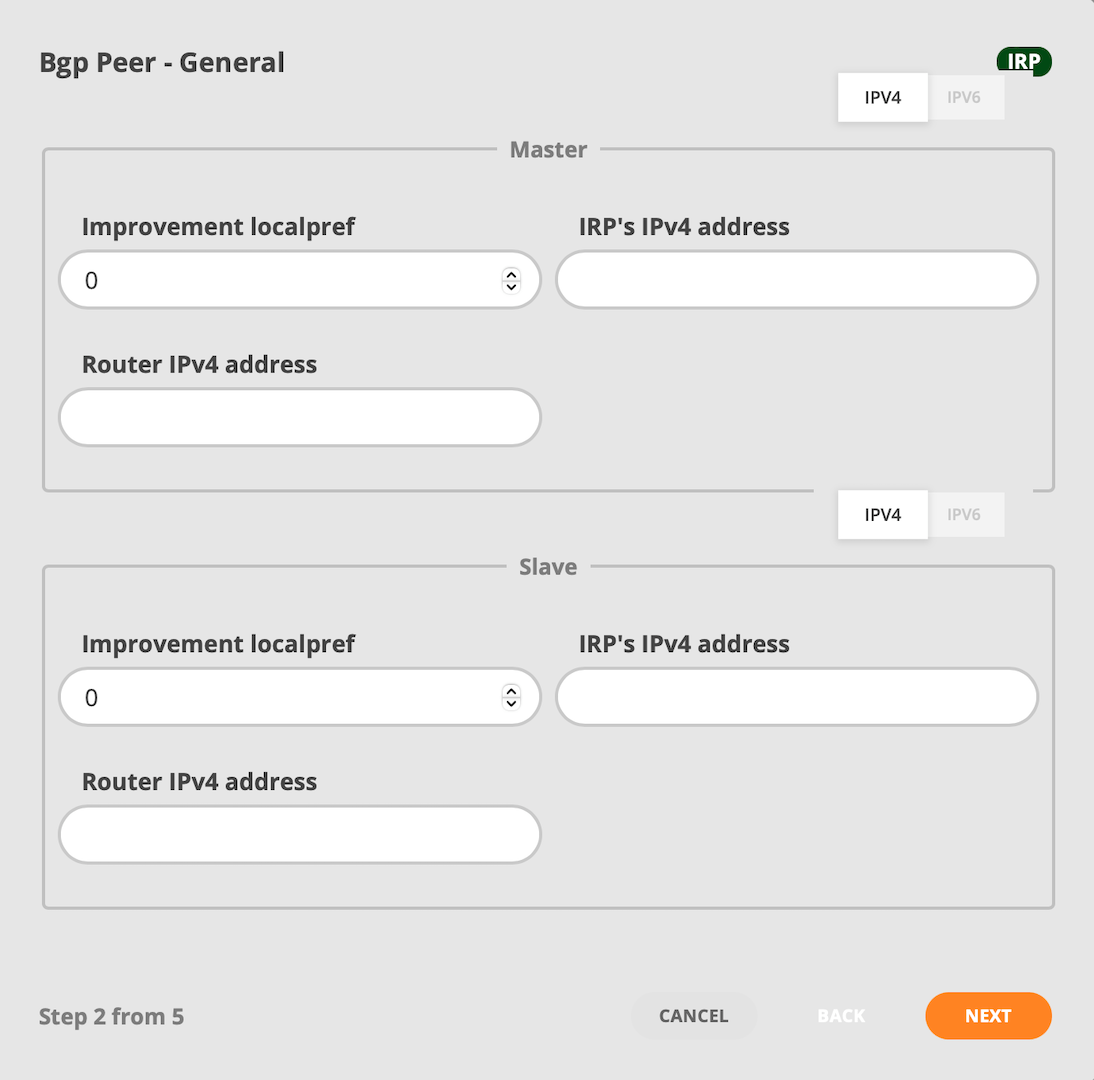

- Router General parameters (IPv4)
- IRP’s IPv4 address (bgpd.peer.X.master_our_ip)
- Router IPv4 address (bgpd.peer.X.master_peer_ip)
- Announced Improvement LocalPref value (bgpd.peer.X.master_localpref)
- Router General parameters (IPv6)
- IRP’s IPv6 address (bgpd.peer.X.master_our_ipv6)
- Router IPv6 address (bgpd.peer.X.master_peer_ipv6)
- Announced Improvement LocalPref value (bgpd.peer.X.master_localpref)

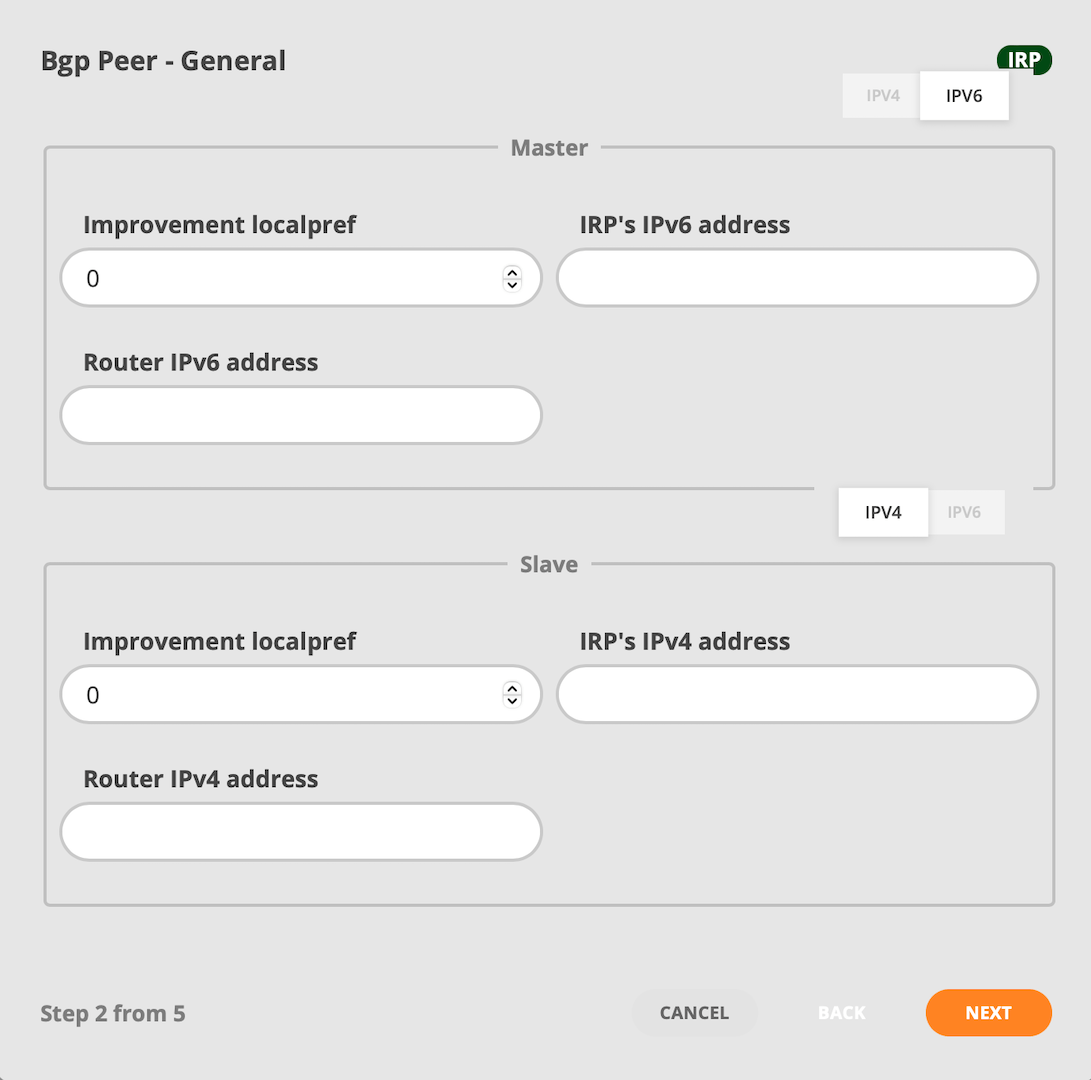

Figure 3.2.11: Configuration editor: Router IPv6 addresses

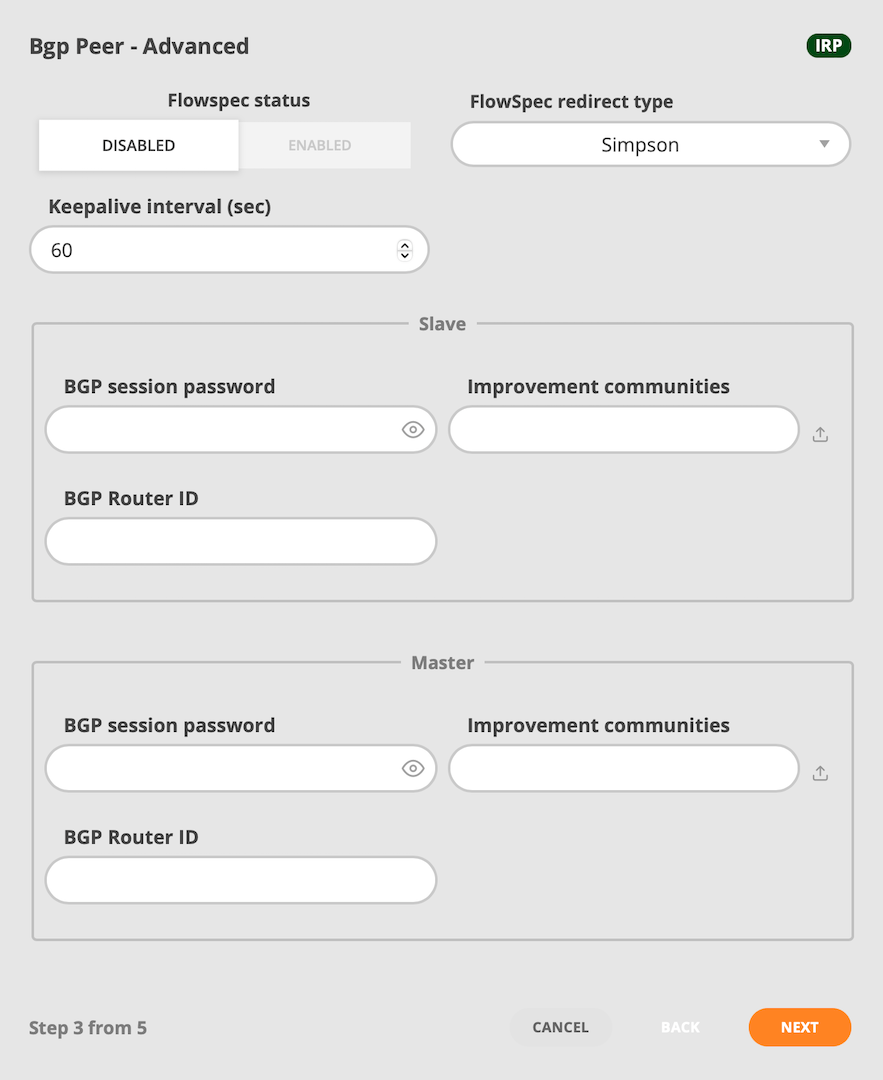

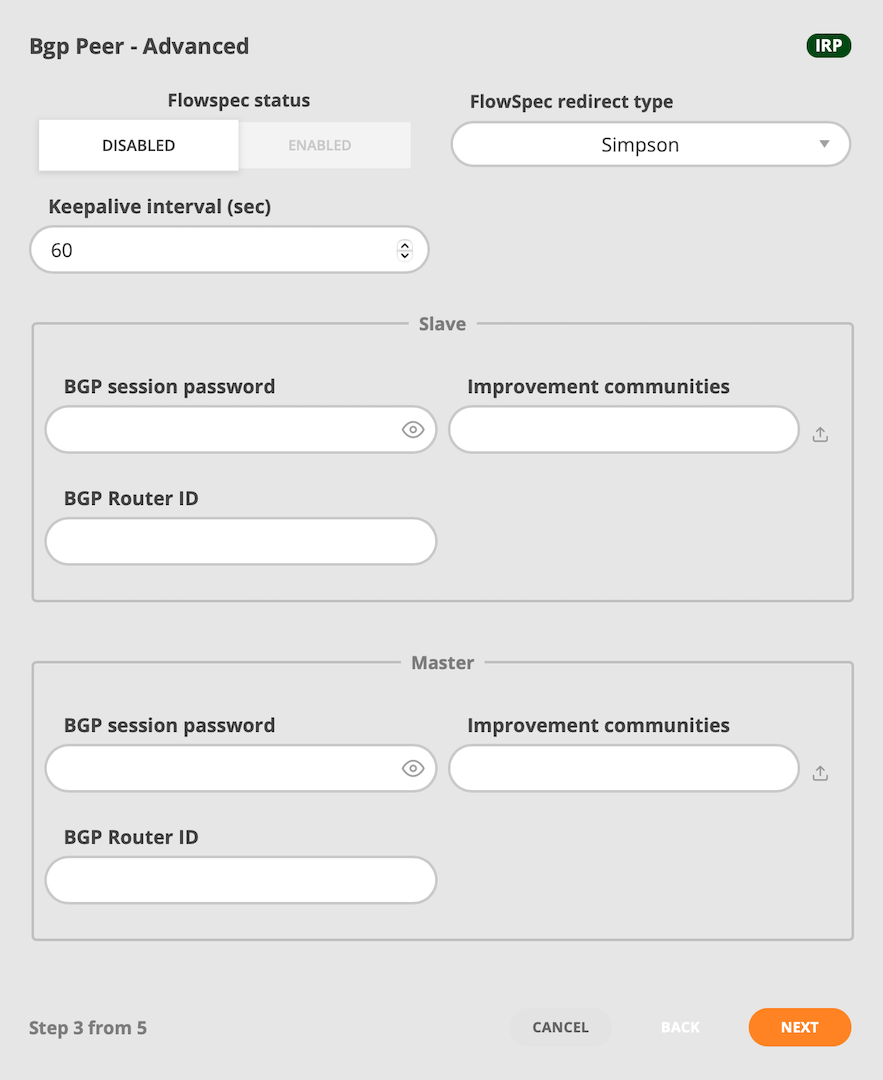

- Router Advanced parameters
- Flowspec status (bgpd.peer.X.flowspec)
- Flowspec redirect type (bgpd.peer.X.flowspec.redirect_type)
- Keepalive interval (sec) (bgpd.peer.X.keepalive)
- BGP session password (bgpd.peer.X.master_password)
- Improvement communities (bgpd.peer.X.master_communities)
- BGP Router ID (bgpd.peer.X.master_router_id)

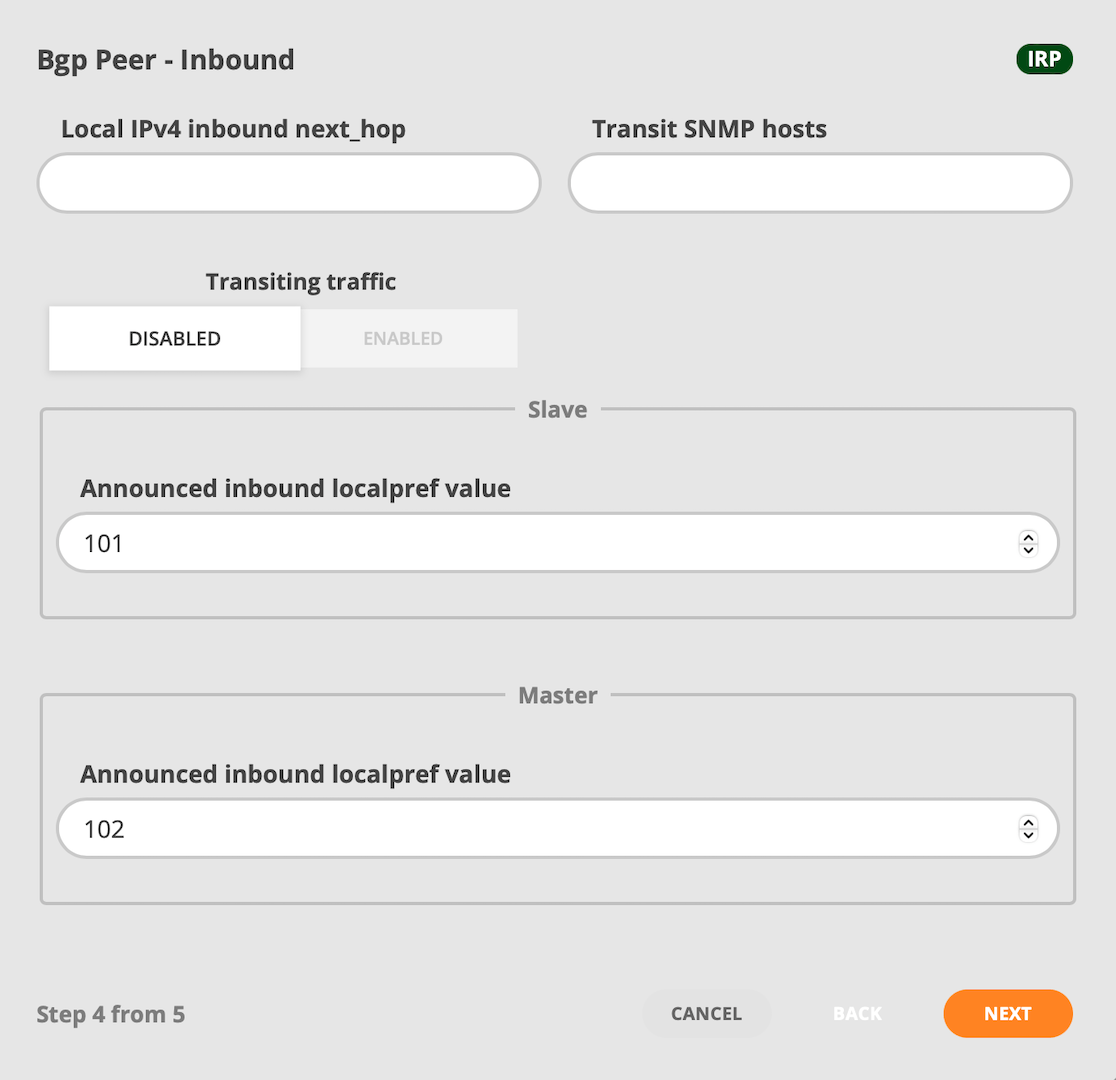

- Router Inbound parameters
- Local IPv4/IPv6 inbound next_hop (bgpd.peer.X.inbound.ipv4.next_hop, bgpd.peer.X.inbound.ipv6.next_hop)
- Transit SNMP hosts (bgpd.peer.X.transit.snmp)
- Transiting traffic (bgpd.peer.X.transit.status)
- Announced inbound localpref value (bgpd.peer.X.inbound.master_localpref) (bgpd.peer.X.inbound.slave_localpref)

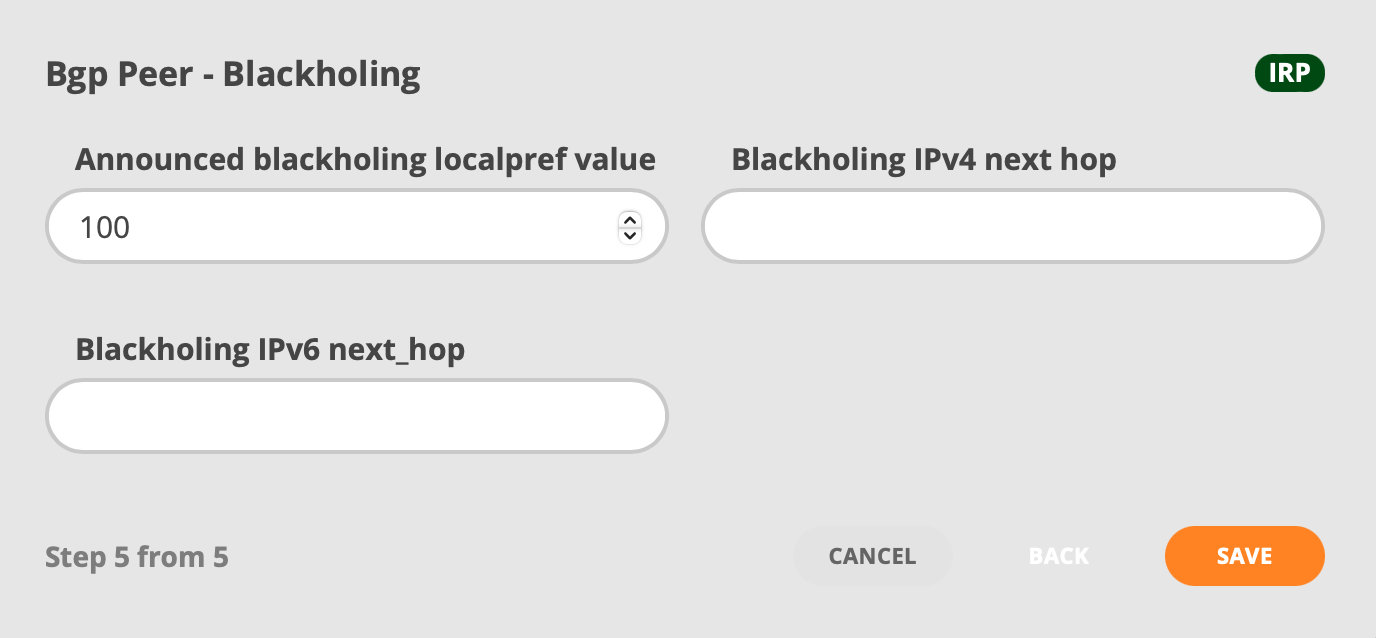

- Router Blackholing parameters
- Announced Blackholing LocalPref value (bgpd.peer.X.blackholing.localpref)
- Blackholing IPv4 next_hop (bgpd.peer.X.blackholing.ipv4.next_hop)
- Blackholing IPv6 next_hop (bgpd.peer.X.blackholing.ipv6.next_hop)
