6.1 Using Filters in Data Explorer

Measuring Traffic Volume to mysql. #

Description: Measure the total traffic volume (total octets, minimum, and maximum) directed to mysql.

 Filter:  Application Name is mysql,

Group By Application Name.

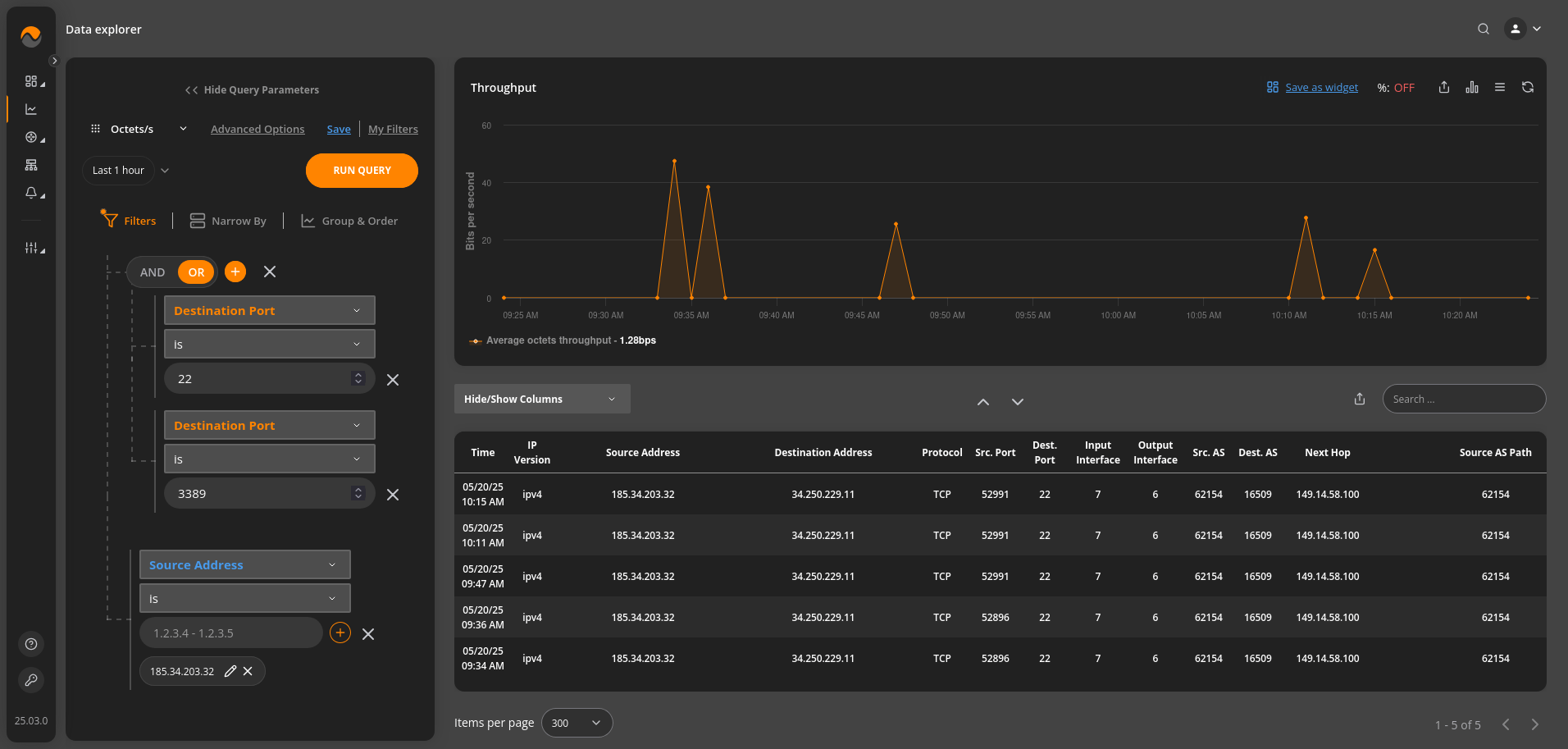

Monitoring Traffic for Remote Administration Activity #

Description: Monitor network traffic originating from the specific IP address 185.234.216.136 targeting ports commonly used for remote administration, such as SSH (port 22) and RDP (port 3389).

 Filter: Source Address is 185.234.216.136 AND Destination Port is 22 OR Destination Port is 3389.

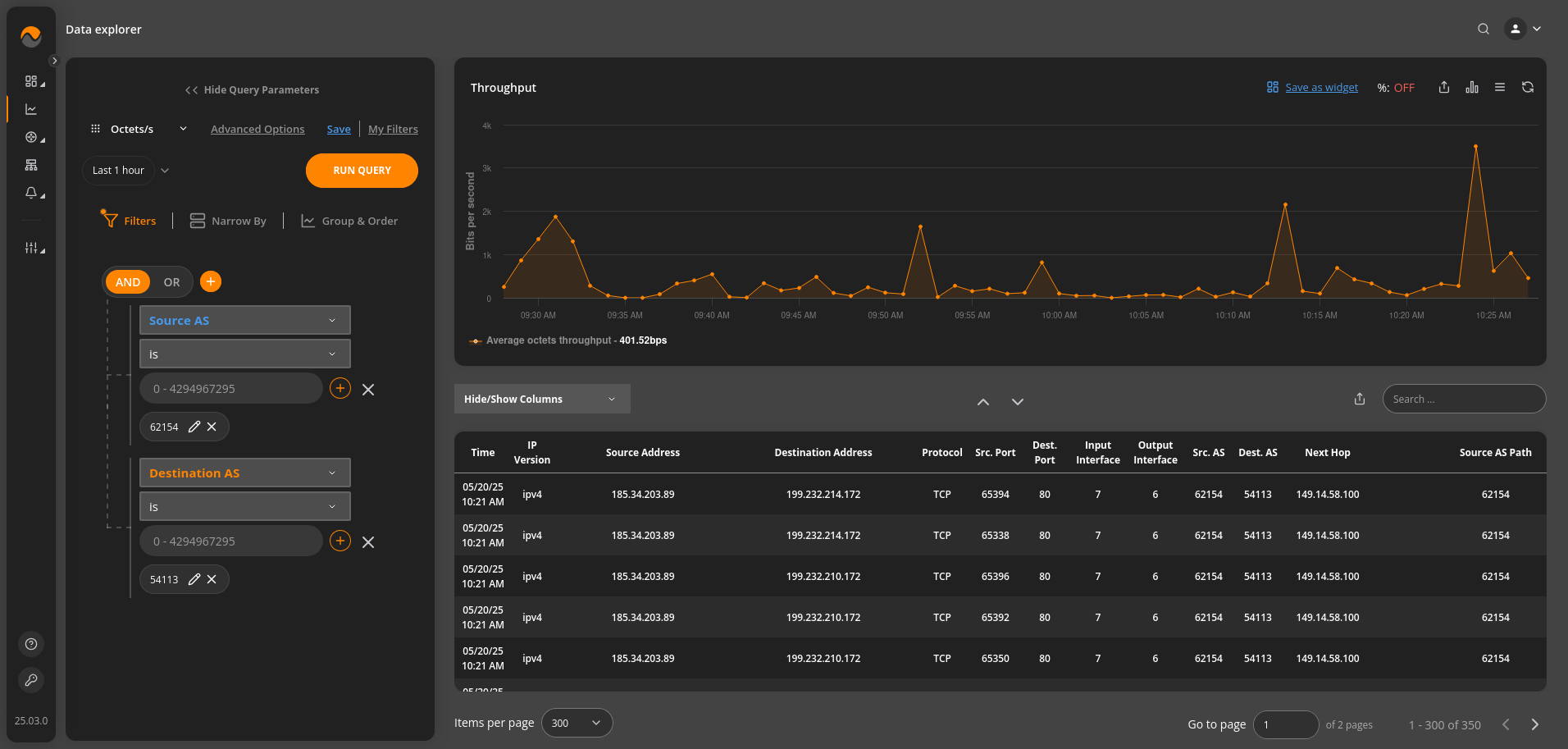

Verifying Traffic between Two Autonomous Systems #

Description: Verify traffic exchanged between two specific Autonomous Systems (AS).

 Filter: Source AS is 62154 AND Destination AS is 31252.

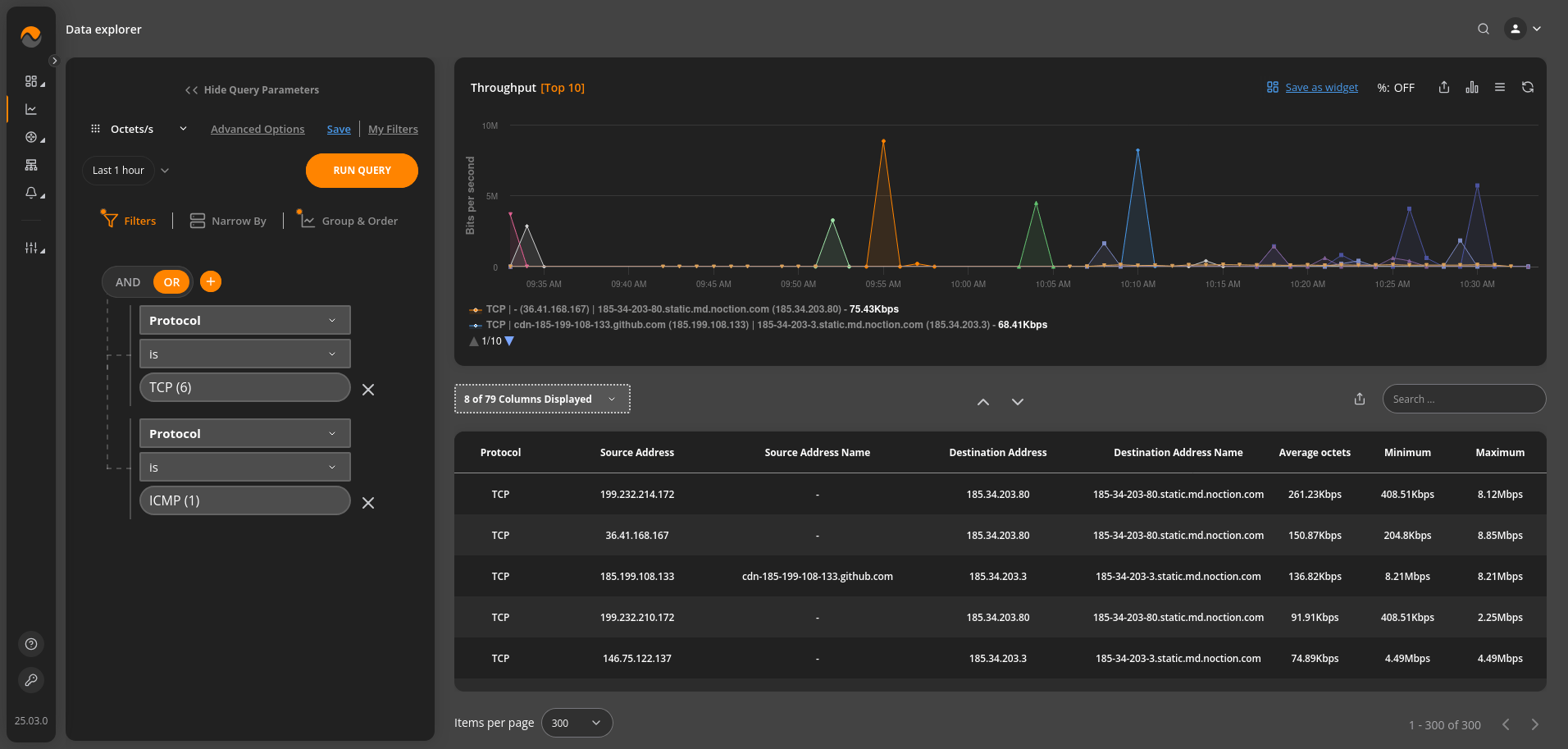

Protocol Traffic Analysis #

Description: Analyze network traffic focusing on TCP and UDP protocols or use grouping to focus on specific fields or compare the amount of traffic.

 Filter: Protocol is TCP OR Protocol is UDP.

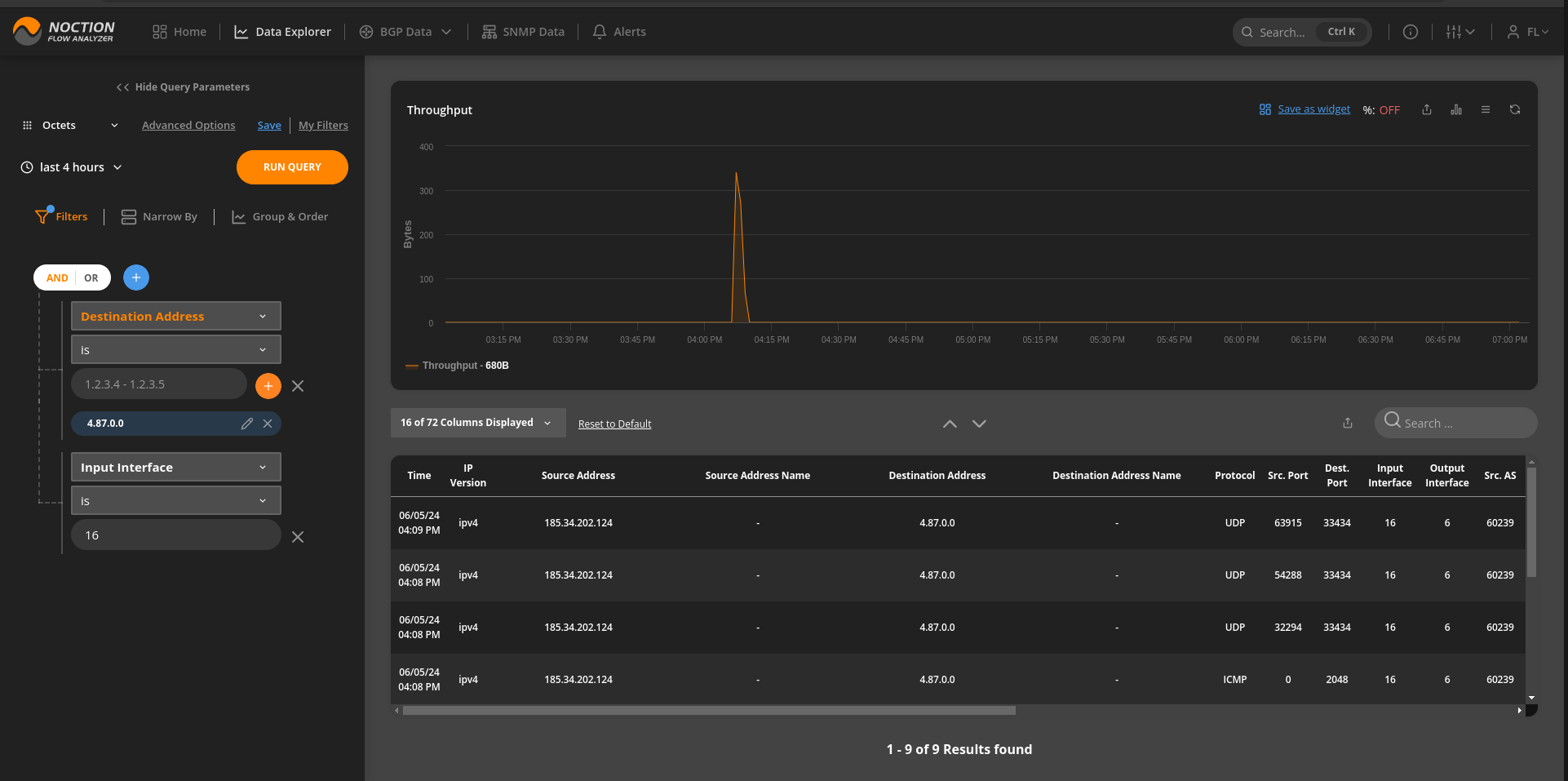

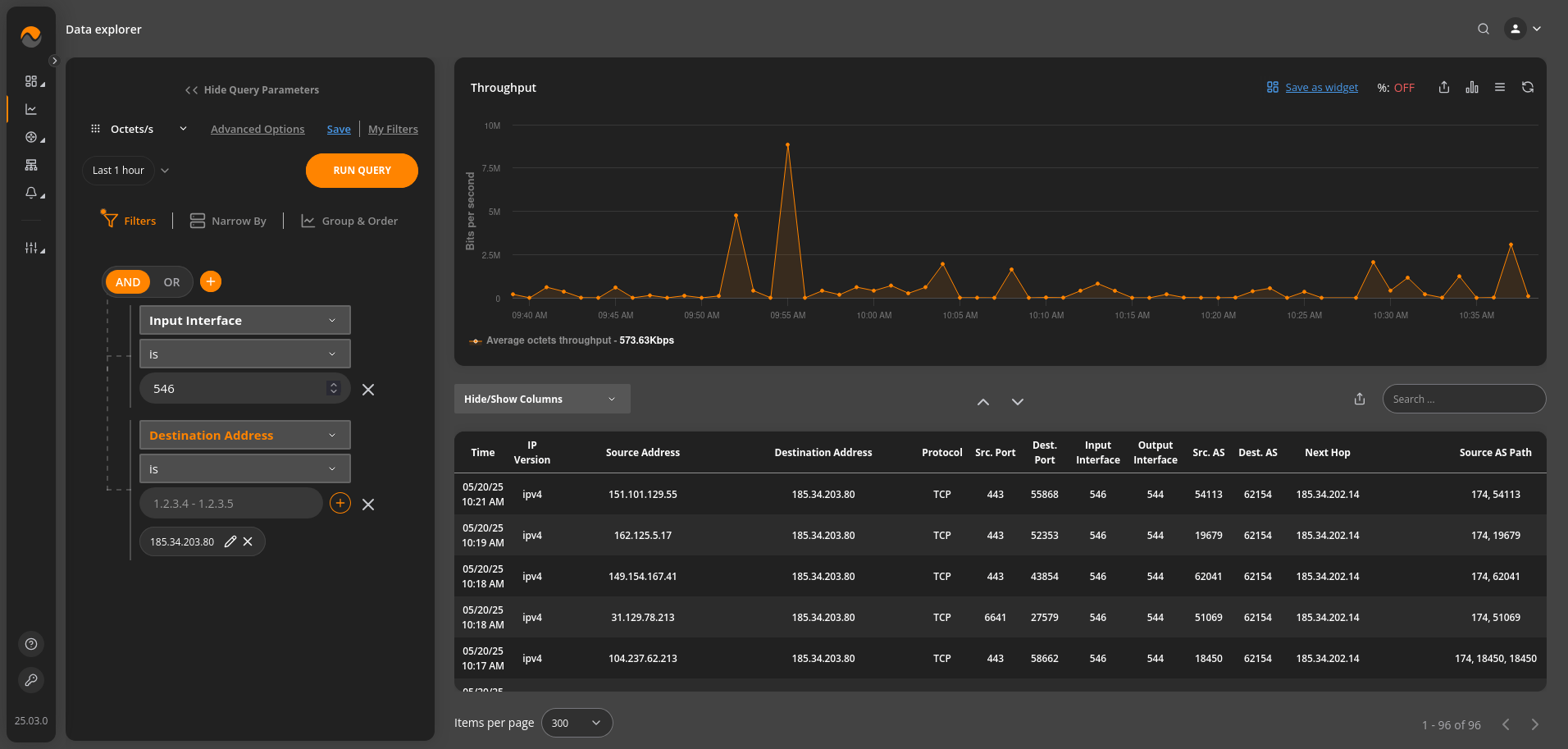

Traffic Monitoring on Critical IP and Input Interface #

Description: Monitor network traffic destined for the IP address 4.87.0.0 specifically entering through input interface 16.

 Filter: Destination Address is 4.87.0.0 AND Input Interface is 16.

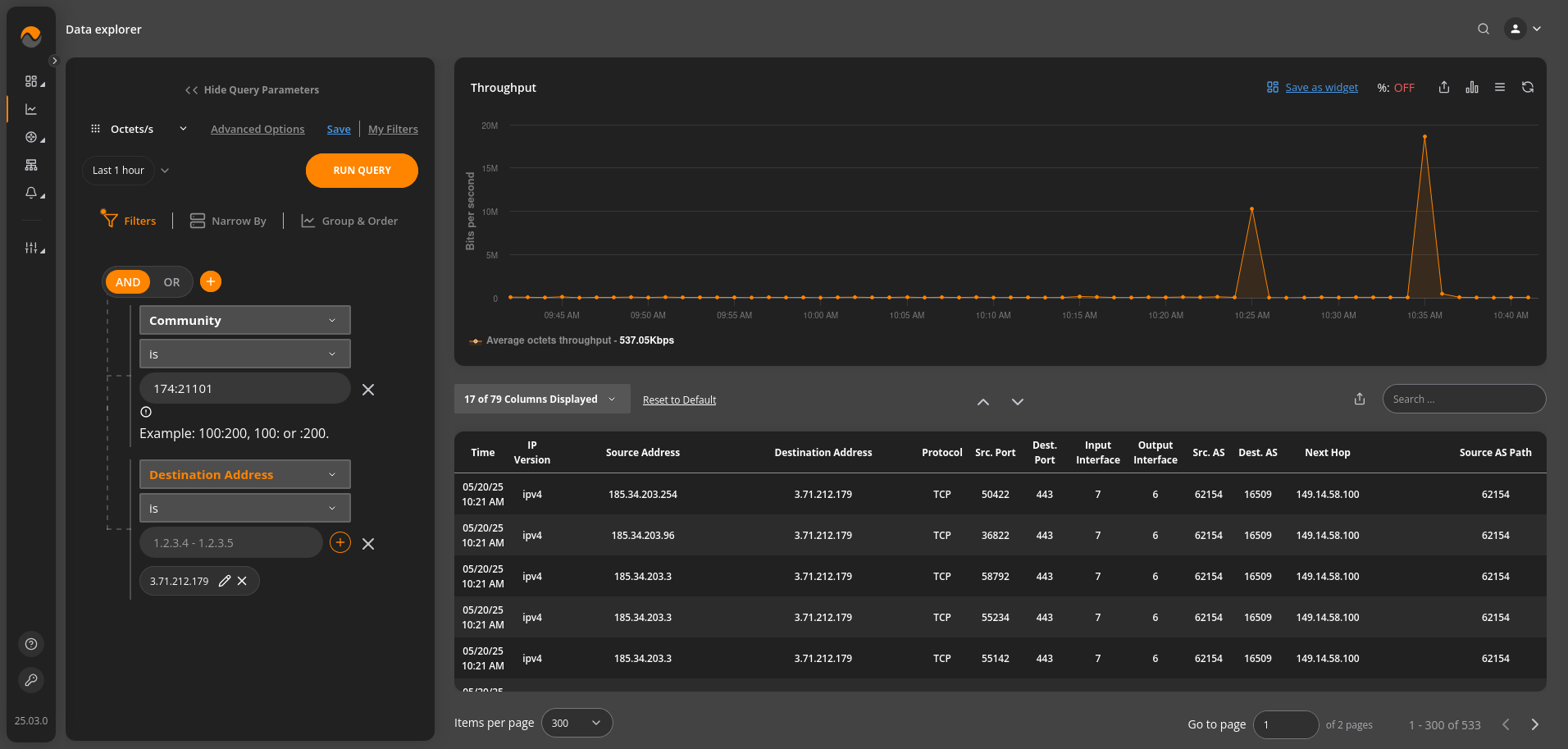

Traffic Identification Based on BGP Communities #

Description: Monitor network traffic associated with the specified BGP community (31580:31580) directed towards the destination IP address 185.108.39.69.

Filter: Community is 31580:31580 AND Destination Address is 185.108.39.69.

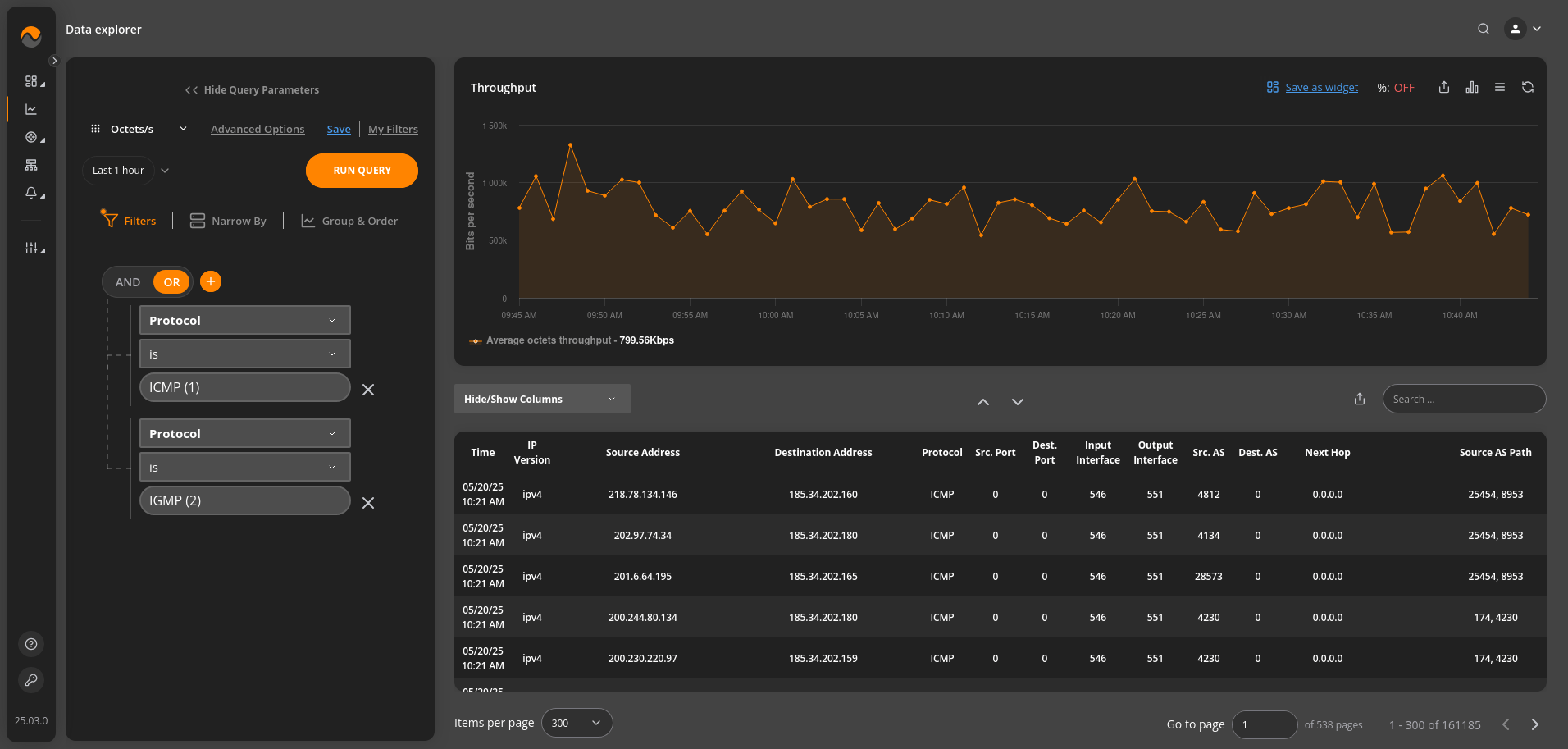

Traffic Monitoring for ICMP and IGMP Protocols #

Description: Monitor ICMP (Internet Control Message Protocol) and IGMP (Internet Group Management Protocol) traffic to analyze ping requests and multicast group communication.

Filter: Protocol is ICMP OR Protocol is IGMP.

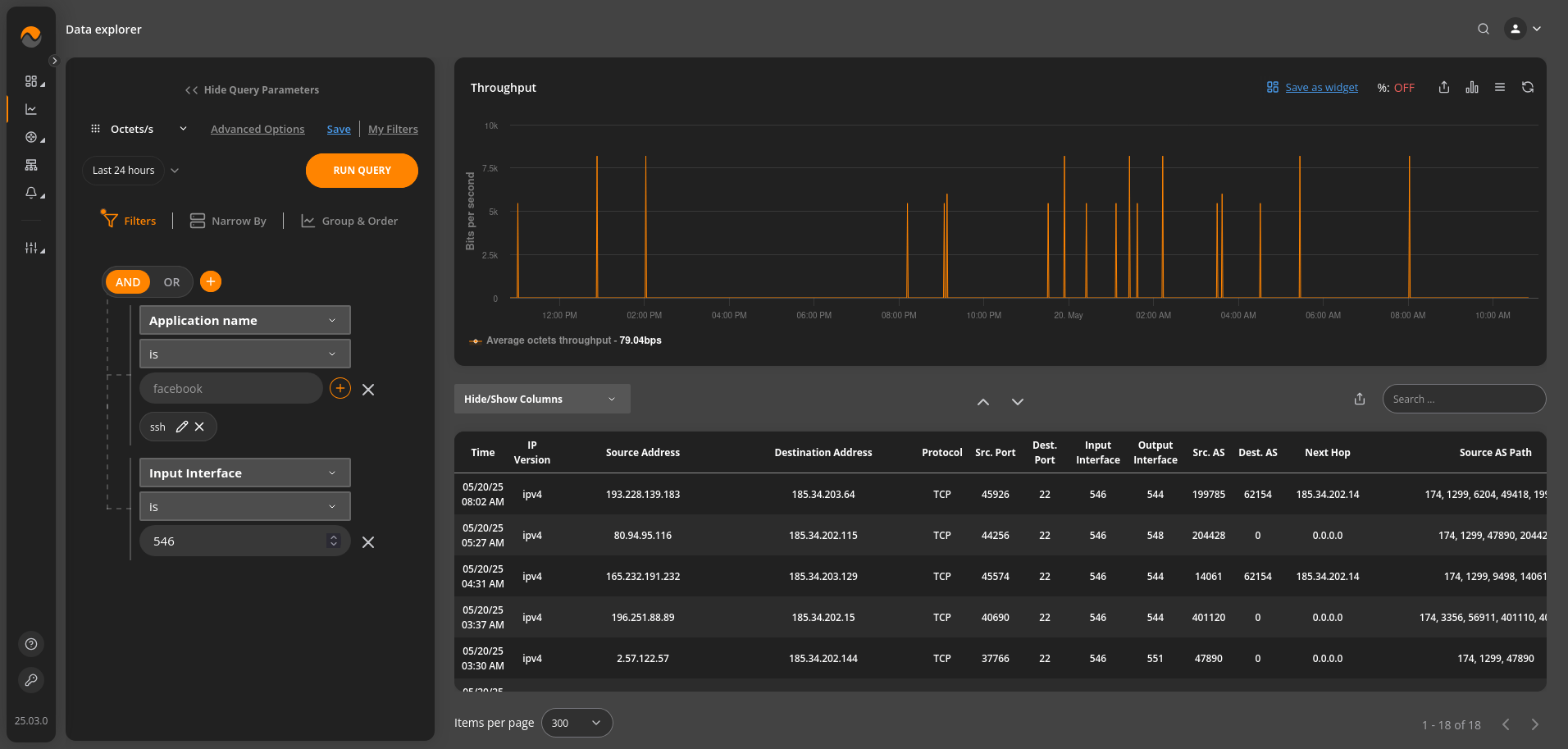

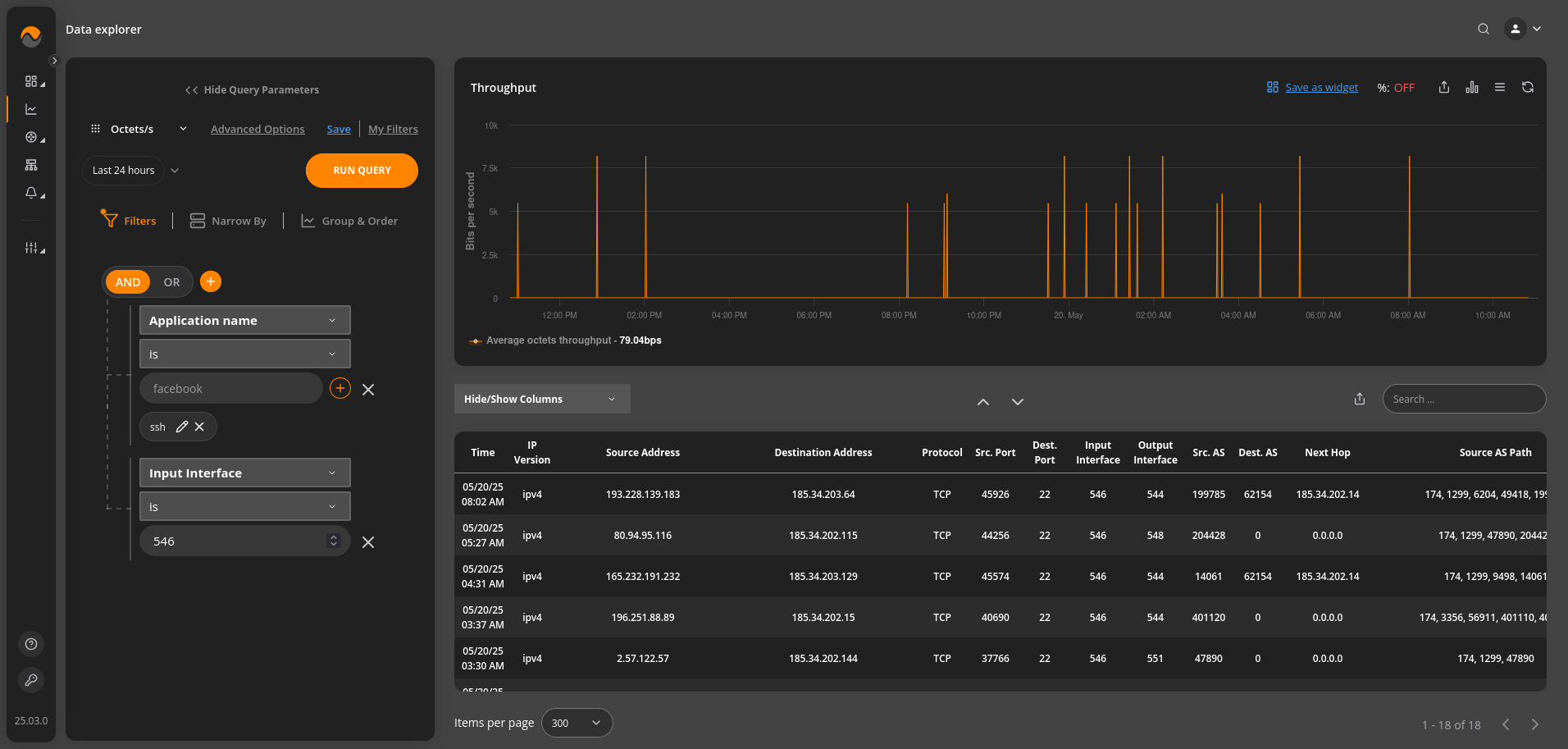

Traffic Monitoring for ssh on Input Interface 7 #

Description: Monitor traffic originating from input interface 7 specifically for the ssh to analyze its usage patterns.

Filter: Choose Application Name is ssh AND Input Interface is 7.

Traffic Analysis on Exporter IP Address #

Description: Monitor traffic that passes through the device 185.34.202.233 specifically to port 80 (HTTP) to analyze web access patterns.

Filter: Choose Exporter Address(Device) is 185.34.202.233 AND Destination Port is 80.

SNMP Management Traffic Analysis #

Description: Monitor SNMP (Simple Network Management Protocol) traffic specifically to port 161 to analyze network management requests and operations.

Filter: Destination Port is 161 AND Protocol is UDP.

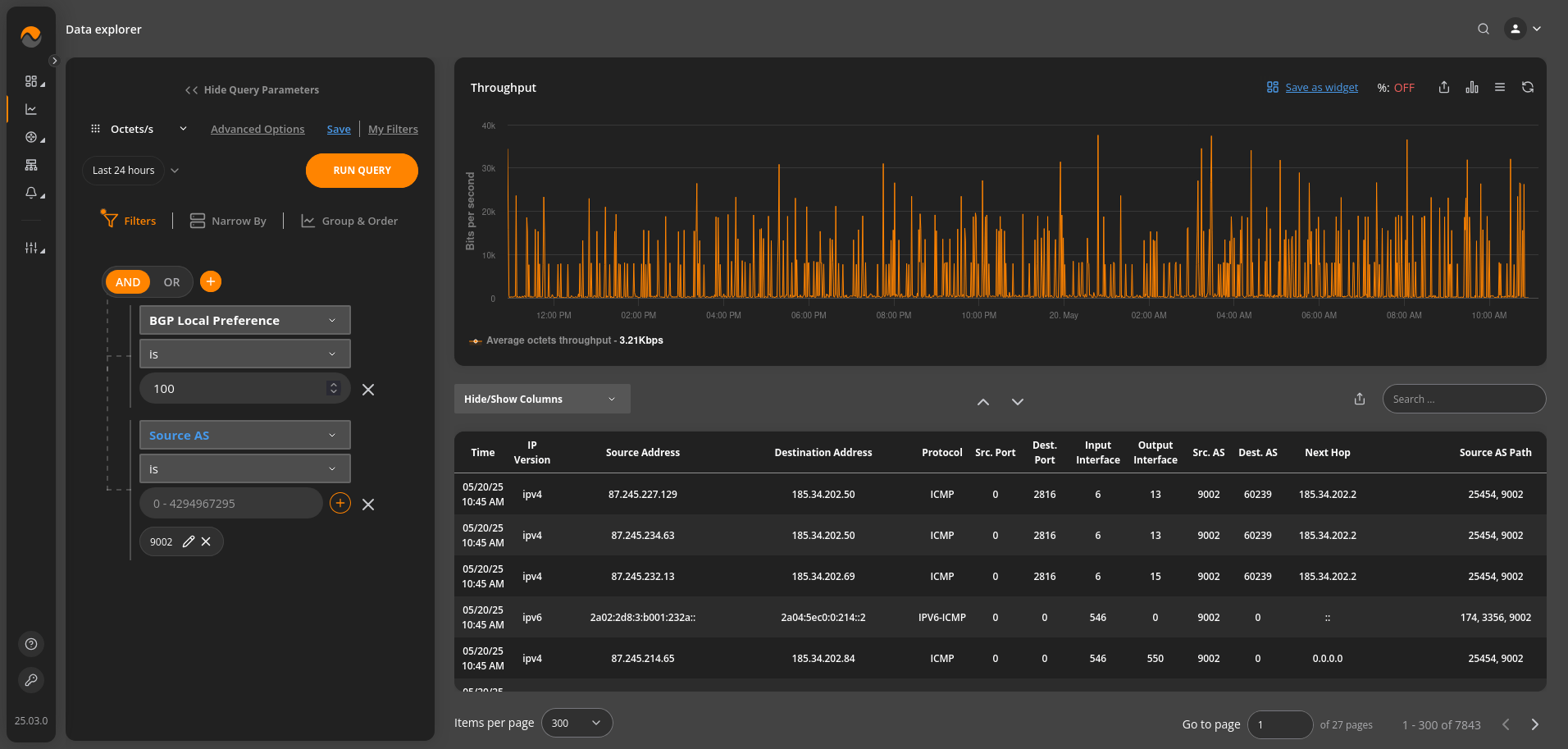

Traffic Identification with Specific Local Preference #

Description: Analyze traffic with a BGP (Border Gateway Protocol) local preference of 100 originating from autonomous system 14618.

Filter:  BGP Local Preference is 100 AND Source AS is 14618.

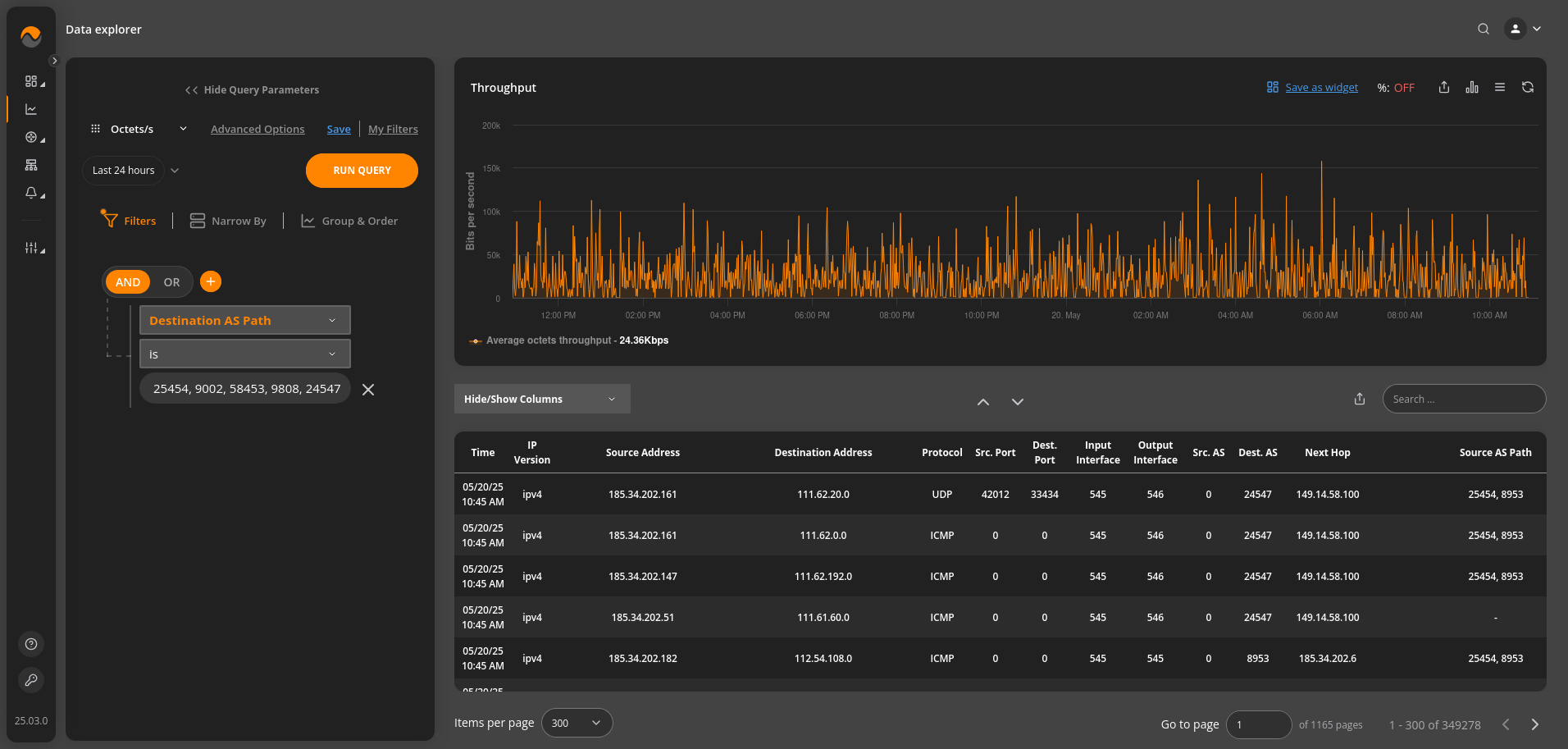

Traffic Analysis Based on a Specific AS Path #

Description: Monitor traffic following a specific AS (Autonomous System) path consisting of AS numbers 31252, 3356, 4837, and 17622.

Filter: Destination AS Path is 31252, 3356, 4837, 17622.

Traffic Identification Based on the Next Hop Address #

Description: Identify traffic based on the next hop address 95.65.8.137.

Filter: Next Hop is 95.65.8.137.

 Analysis of Exported Traffic Based on Exporter ID #

Description: Analyze if exporter with ID 589824 is actually exporting or registering traffic on port 21 (FTP).

Filter: Destination Port is 21 AND Exporter ID is 589824.

Monitor and analyze HTTPS traffic originating from a source address with specific mask. #

Description: Monitor and analyze HTTPS traffic originating from the source address 193.163.125.224 with a specific mask of 24, targeting destination port 443.

Filter: Source Address is 193.163.125.224 AND Source Mask is 24 AND Destination Port is 443.

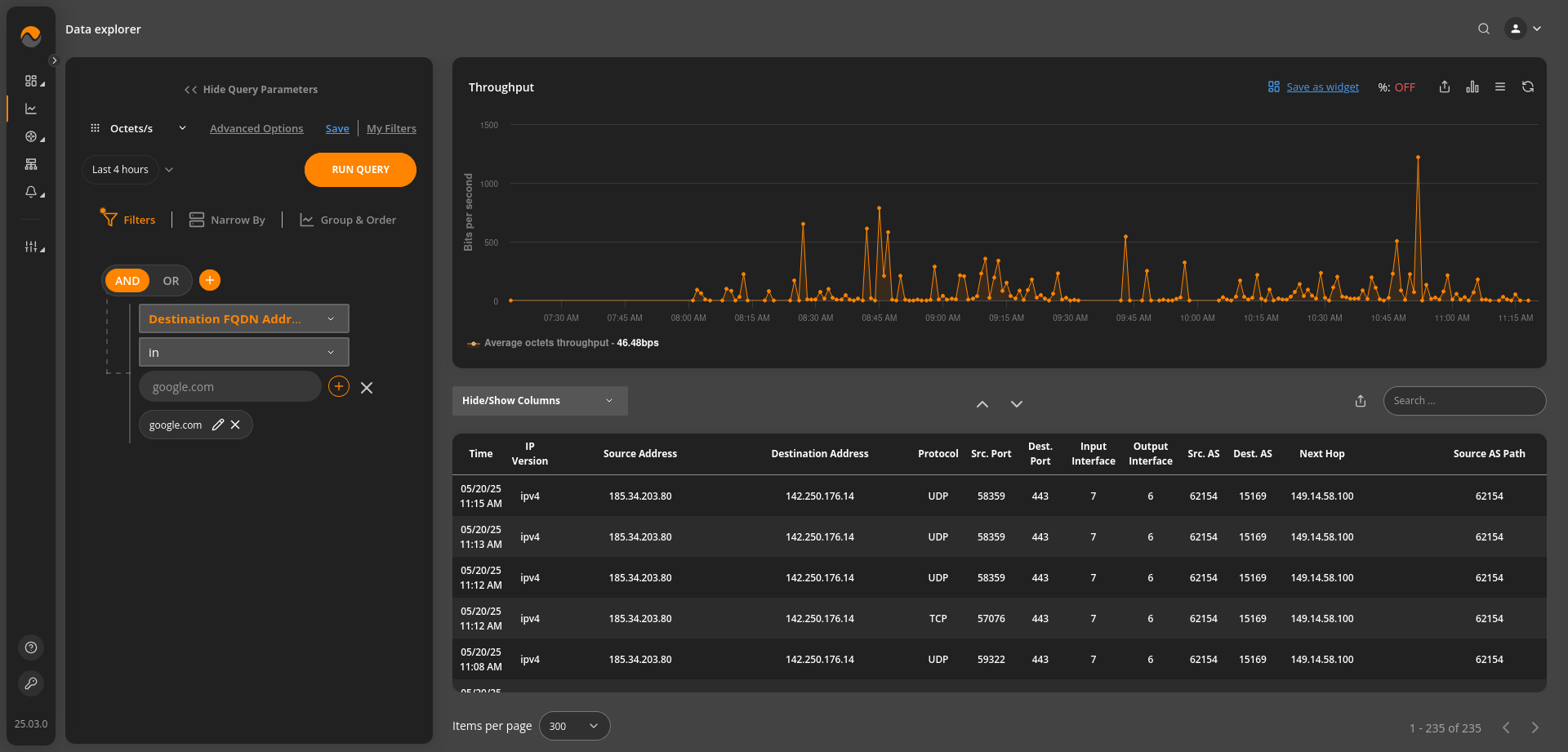

Traffic Monitoring to a Specific Domain #

Description: Monitor network traffic destined for a specific domain, using an FQDN (Fully Qualified Domain Name) filter for the domain “google.com.”

Filter: Destination FQDN Address is google.com.

HTTP Network Traffic Monitoring #

Description: Monitor network traffic that utilizes the HyperText Transfer Protocol (HTTP).

Filter: Destination Port is 80 AND Protocol is TCP.
